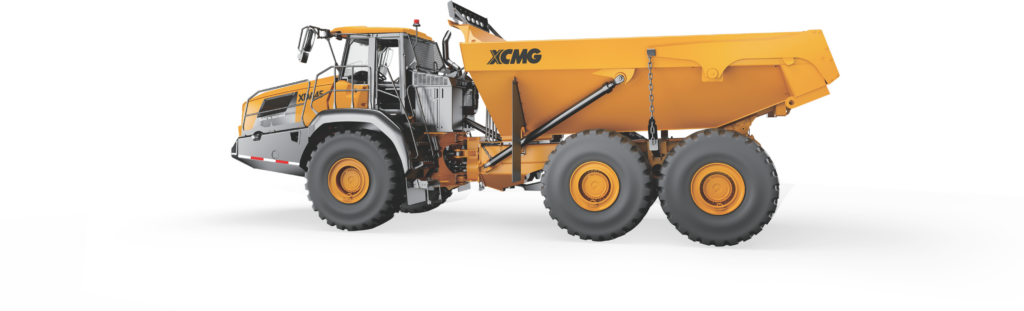

Articulated Dump Truck – XDA45——XCMG

Gross Weight 75000kg
Model Benz OM502
Dimension 11070*3950*3846mm

Since non-frrous metal mining and water conservancy works are of special constructin environment, mining equipements are required to have excellent cross-country performacne to ensure the durability in operation. Thanks to its strong technocial support, the ADT is dedicated to providing customers with complete sonstruciton solutions. By virtue of its sgrong power, superexcellent performacne, excessively low maintance cost, the prodcut is bound to bring you higher working efficience and handsome return on investment



Model XDA45
Performance
Rayload 41000kg
Empty Weight 34000kg
Gross Weight 75000kg
Drive Style 6*6
Max. Speed 54km/h
Max. Gradeability 45%
Max. Steering Angle ±42°
Body Capacity Struck:19.5/20.5m3
Heaped 25/26m3
Dimension 11070*3950*3846mm
Main Parts
Engine
Model Benz OM502
Rated Power/Speed 476hp/1800rpm
Max. Torque/Speed 2300Nm
Drive Train
Tranmission 4800
Speed Range 7FIR
Brake System
Braking System Web Disc Brake
Hoist System
Hoist Time 12s
Hoist Angle 70°
Cab ROPS CAB
Tries 29.5R25
Electrical System 24V
