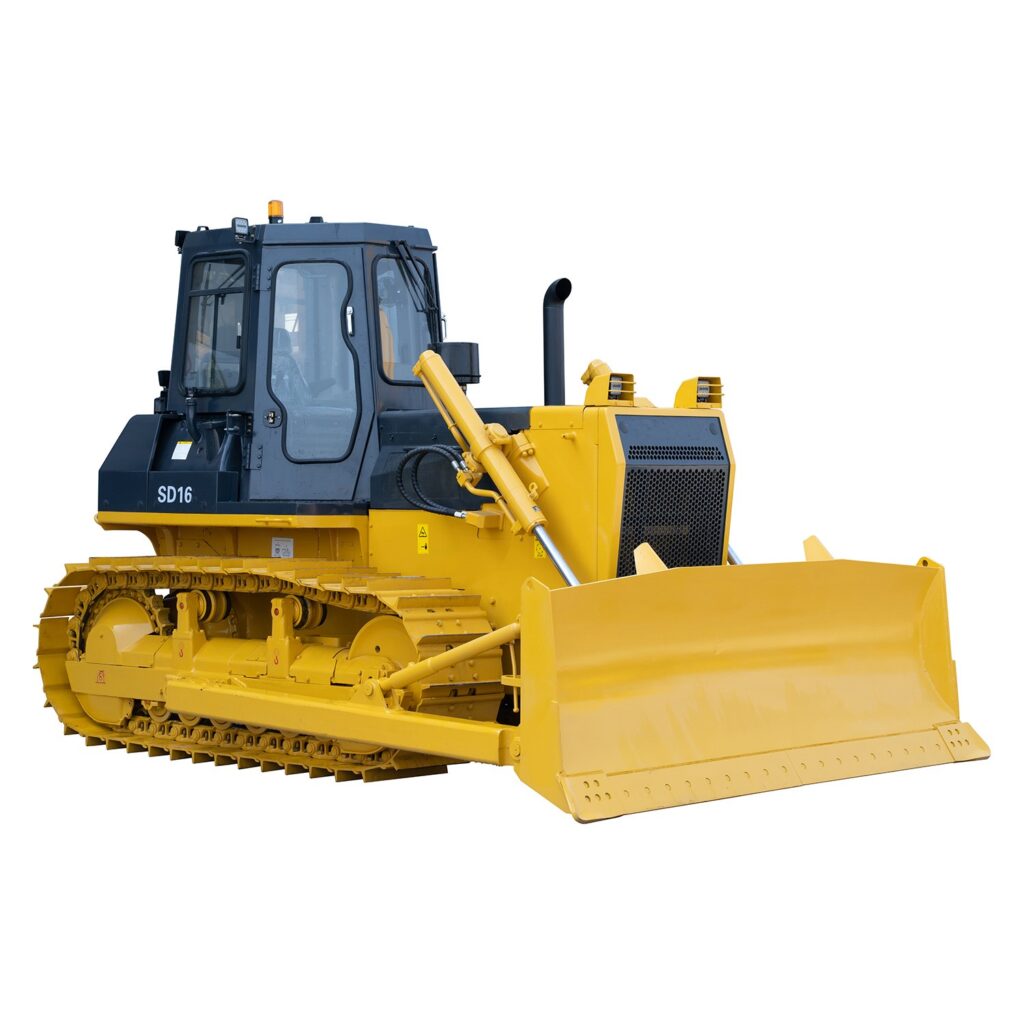

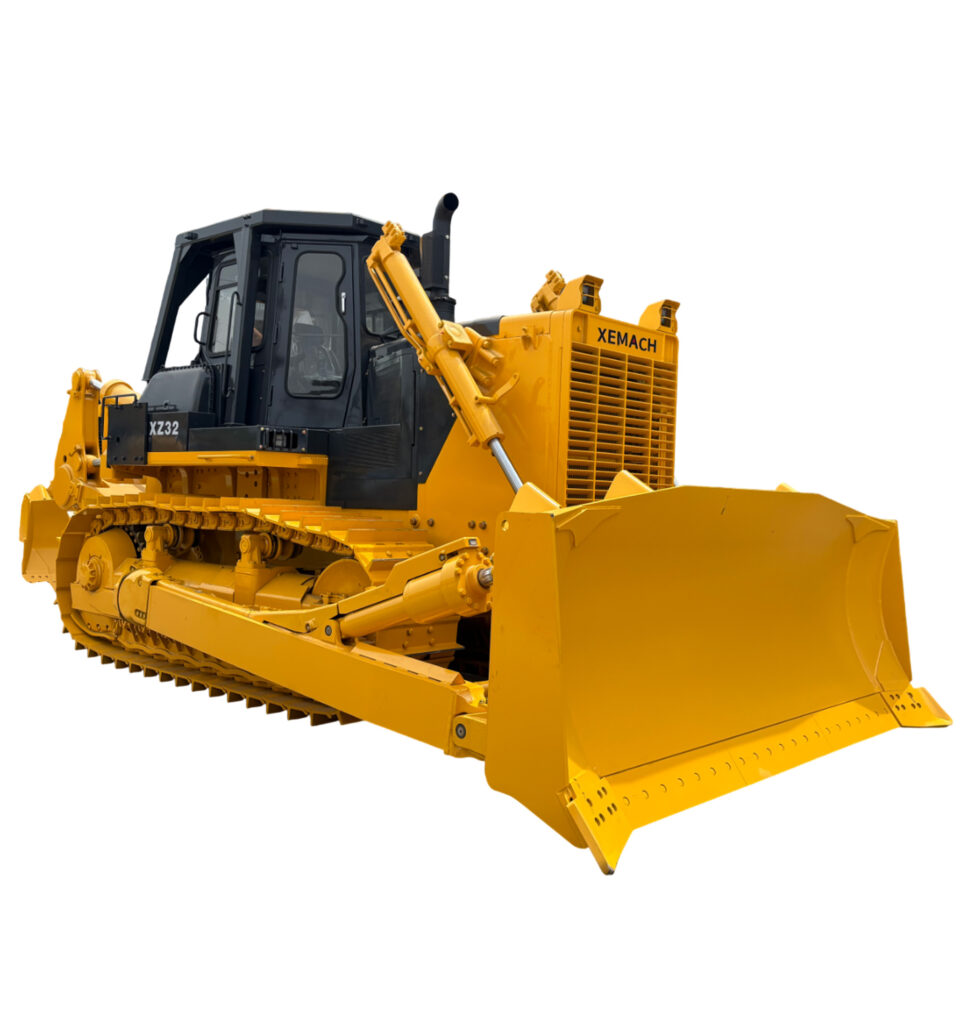

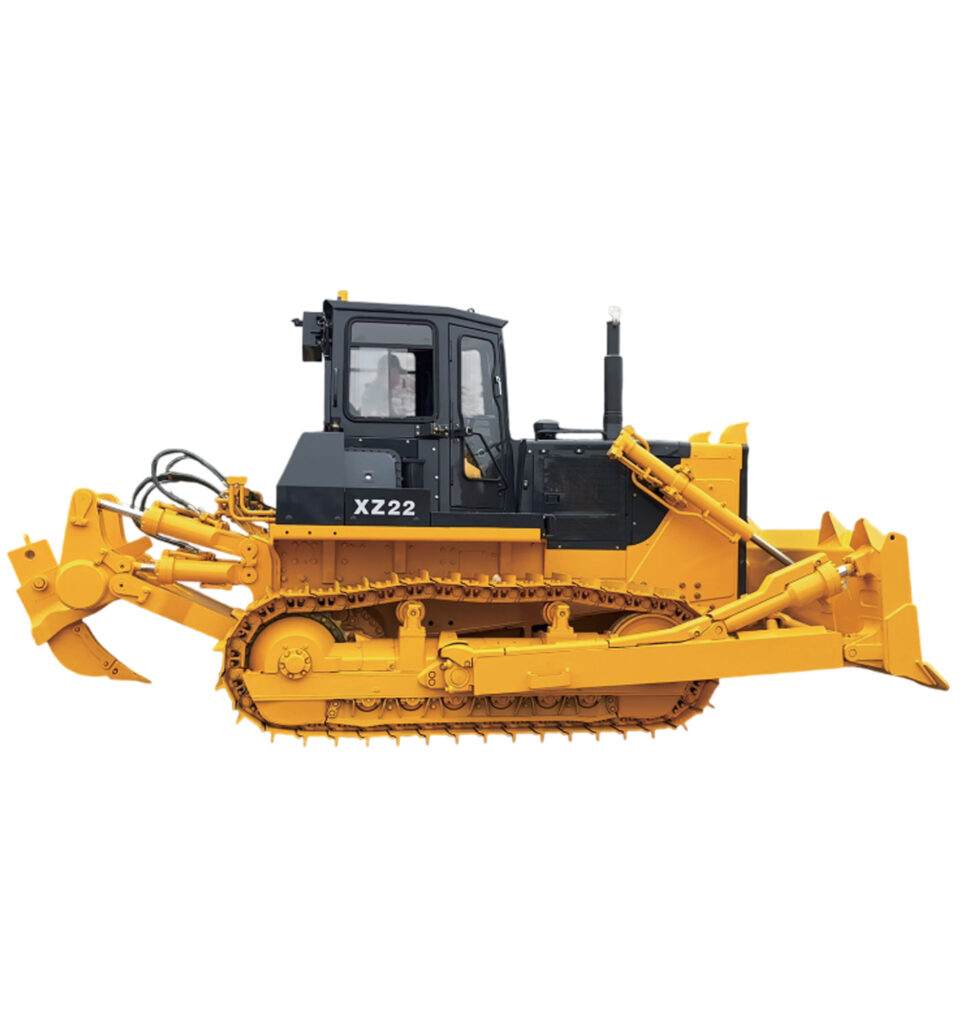

| 整机Overall | 尺寸Dimension | 5140*3388*3032mm |
| 操作重量Operation Weight | 17000kg | |
| 发动机Engine | 型号Model | Weichai WD10G178E25 / WP10G178E355 |
| 缸数Number of Cylinders | 6 | |
| 额定功率Rated Power | 131KW(178HP)@1850rpm | |
| 最大扭矩Max Torque | 765Nm @1300rpm |
| SD16 | SD22 | SD32 | ||||||||
| 整机Overall | 尺寸Dimension | 5140*3388*3032mm | 5406*3725*3395mm | 6880*4130*3725mm | ||||||
| 操作重量Operation Weight | 17000kg | 23500kg | 37200kg | |||||||
| 发动机Engine | 型号Model | Weichai WD10G178E25 / WP10G178E355 | Cummins T855-C280S10 /QSNT-C235 | Cummins A855-C360S10 /QSNT-C345S30 | ||||||
| 类型Type | 水冷，直列，4冲程，直接喷射 Water-cooler, in-line, 4-stroke, direct injection |
水冷，直列式，顶置气门直喷，涡轮增压，柴油 Water-cooled, In-line, overhead valve direct iniection, turbochargeodiesel6 |
水冷，直列式，顶置气门直喷，涡轮增压，柴油 Water-cooled, In-line, overhead valve direct iniection, turbochargeodiesel6 |
|||||||
| 缸数Number of Cylinders | 6 | 6 | 6 | |||||||
| 缸径 x 行程Bore x Stroke | Φ126 x 130mm | Φ139.7 x 152.4mm | Φ139.7 x 152.4mm | |||||||
| 排量Piston Displacement | 9.726L | 14.01L | 14.01L | |||||||
| 额定功率Rated Power | 131KW(178HP)@1850rpm | 175KW(238HP)@1800rpm | 257KW(345HP)@2000rpm | |||||||
| 最大扭矩Max Torque | 765Nm @1300rpm | 1030Nm @1300rpm | 1440Nm @1300rpm | |||||||
| 最小油耗量Fuel Consumption | 214g/KWH | 205g/KWH | 245g/KWH | |||||||
| 变速系统 Transmission |
液力变矩器Torque Converter | 单级单相三元件 3-element,1 stage,1 phase | 单级单相三元件 3-element,1 stage,1 phase | 单级单相三元件 3-element,1 stage,1 phase | ||||||
| 变速箱Transmission | 行星齿轮型、动力换挡、强制润滑 Planetary gear type, power-shift, forced lubrication |
行星齿轮型、动力换挡、强制润滑 Planetary gear type, power-shift, forced lubrication |
行星齿轮型、动力换挡、强制润滑 Planetary gear type, power-shift, forced lubrication |
|||||||
| 中央传动Central Drive Shaft | 螺旋锥齿轮、一级减速、飞溅润滑、单级减速 Spiral bevel gear, single-stage speed reduction, splash lubrication |
螺旋锥齿轮、一级减速、飞溅润滑、单级减速 Spiral bevel gear, single-stage speed reduction, splash lubrication |
螺旋锥齿轮、一级减速、飞溅润滑、单级减速 Spiral bevel gear, single-stage speed reduction, splash lubrication |
|||||||
| 转向离合器Steering clutch | 湿式、多片、弹簧压紧、液压分离、液压操纵 Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
湿式、多片、弹簧压紧、液压分离、液压操纵 Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
湿式、多片、弹簧压紧、液压分离、液压操纵 Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
|||||||
| 专项制动器Steering brake | 湿式、浮动式、直接操纵、液压联动 Wet type, floating band structure, foot brake with hydraulic booster |
湿式、浮动式、直接操纵、液压联动 Wet type, floating band structure, foot brake with hydraulic booster |
湿式、浮动式、直接操纵、液压联动 Wet type, floating band structure, foot brake with hydraulic booster |
|||||||
| 终传动Final drive | 直齿二级减速、飞溅润滑式 2-stage speed reduction of spur gear, splash lubrication |
直齿二级减速、飞溅润滑式 2-stage speed reduction of spur gear, splash lubrication |
直齿二级减速、飞溅润滑式 2-stage speed reduction of spur gear, splash lubrication |

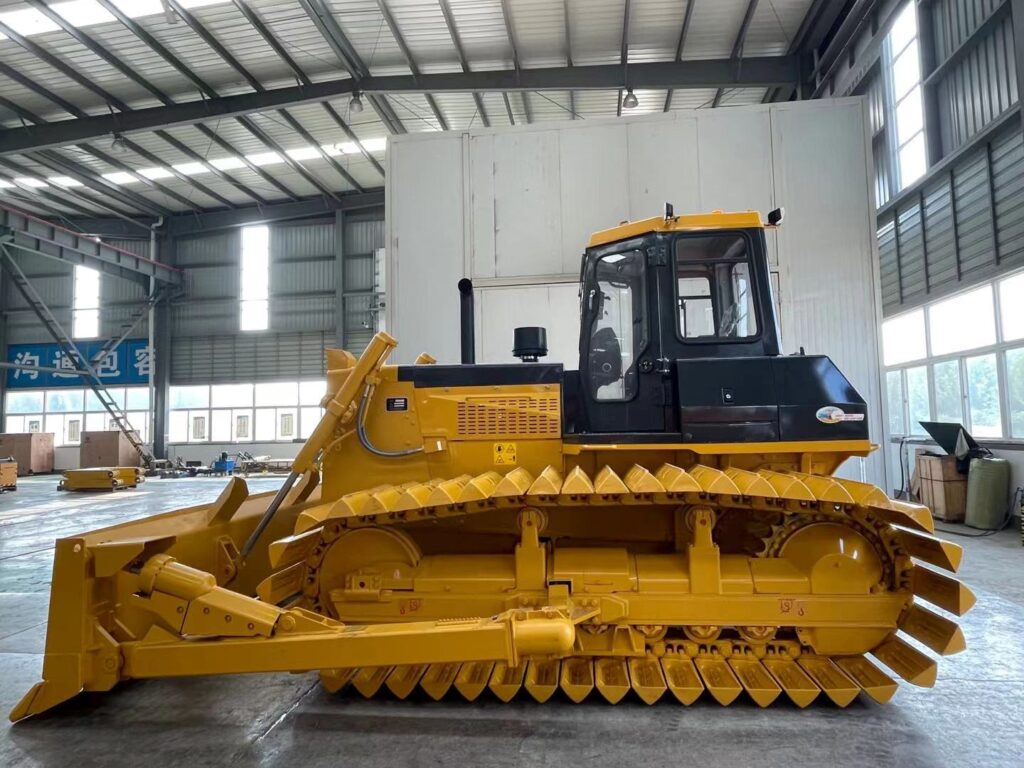

|||||||
| 速度 Travel Speed |
档位Gear | 1st | 2nd | 3rd | 1st | 2nd | 3rd | 1st | 2nd | 3rd |
| 前进Forward | 0-3.29km/h | 0-5.82km/h | 0-9.63km/h | 0-3.6km/h | 0-6.5km/h | 0-11.2km/h | 0-3.6km/h | 0-6.6km/h | 0-11.5km/h | |
| 后退Reverse | 0-4.28km/h | 0-7.59km/h | 0-12.53km/h | 0-4.3km/h | 0-7.7km/h | 0-13.2km/h | 0-4.4km/h | 0-7.8km/h | 0-13.5km/h | |
| 底盘系统 Undercariage System |
类型Type | 八字梁摆动式，平衡梁悬挂结构 Sprayed beam, suspended structure of equalizer |
八字梁摆动式，平衡梁悬挂结构 Sprayed beam, suspended structure of equalizer |
八字梁摆动式，平衡梁悬挂结构 Sprayed beam, suspended structure of equalizer |

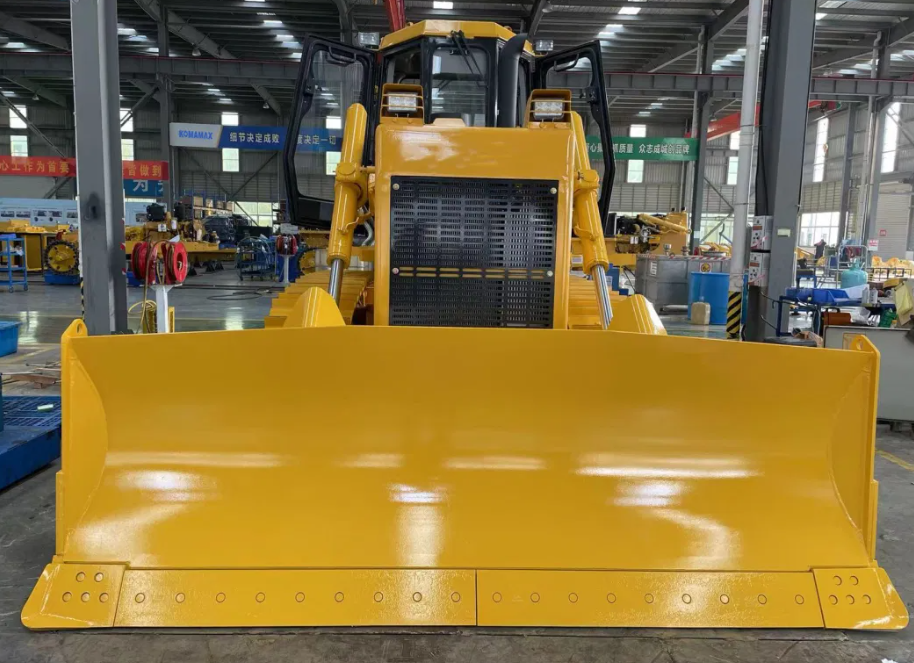

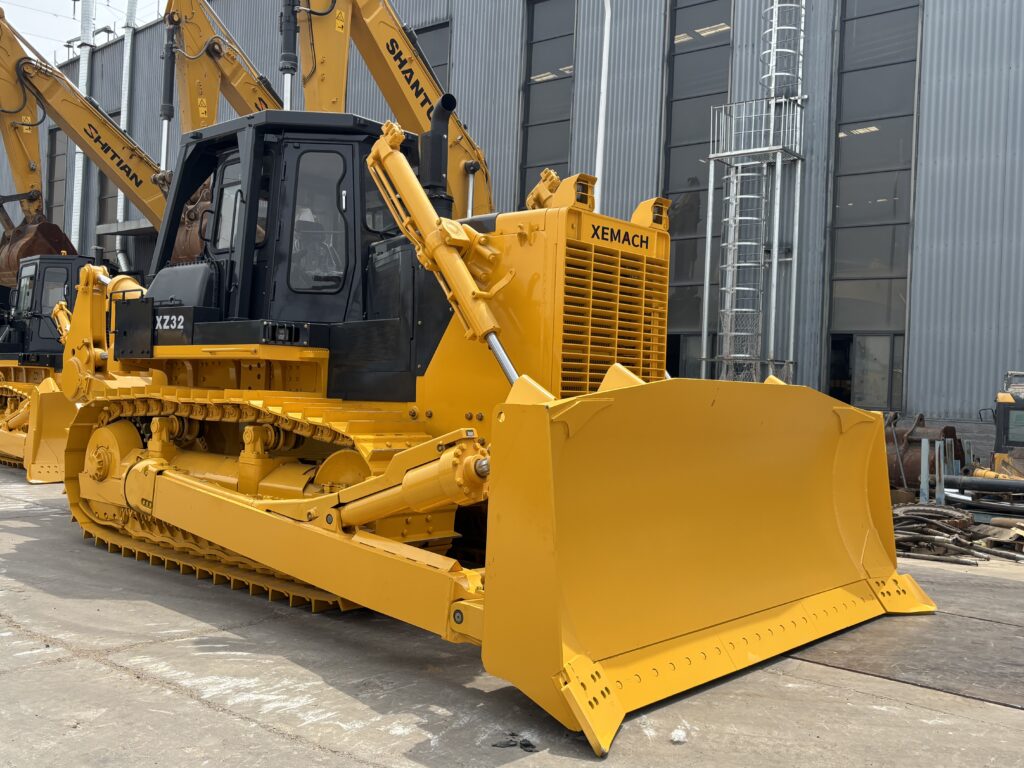

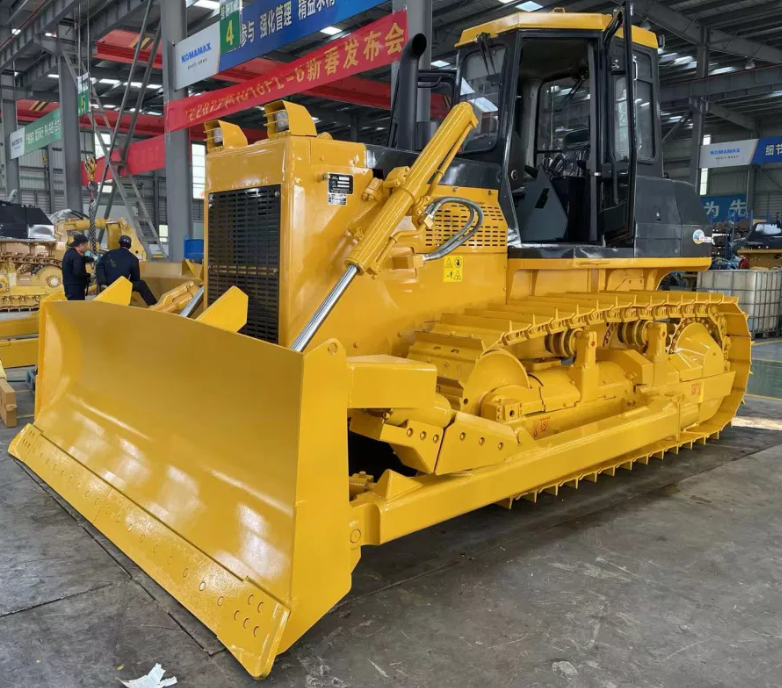

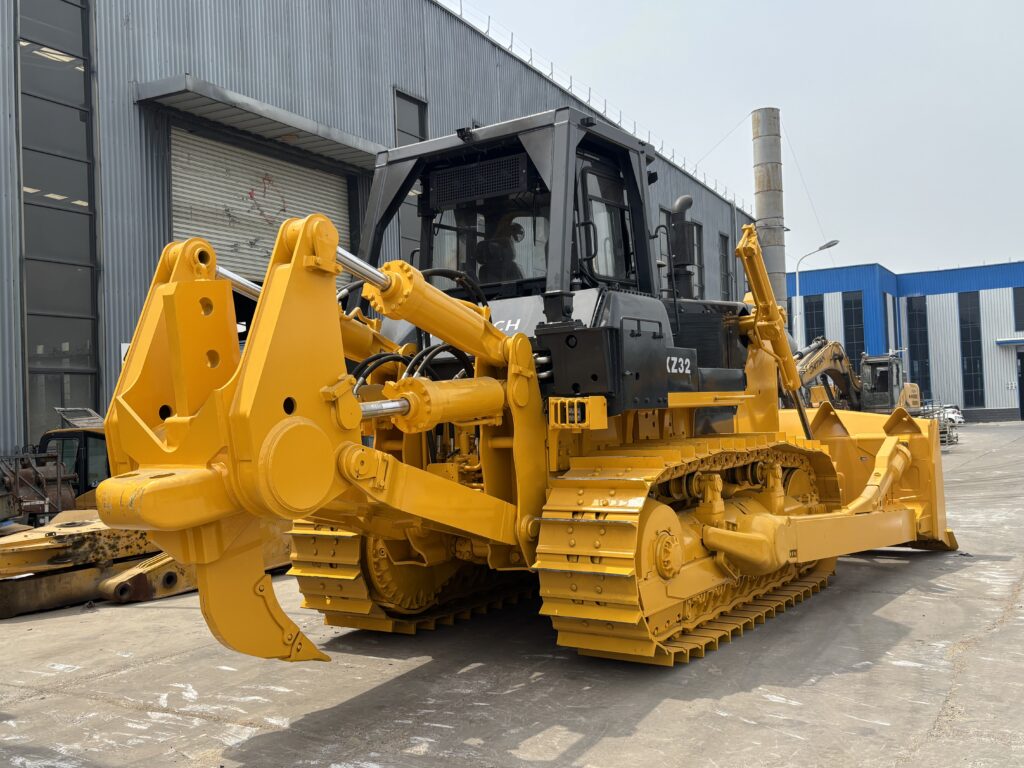

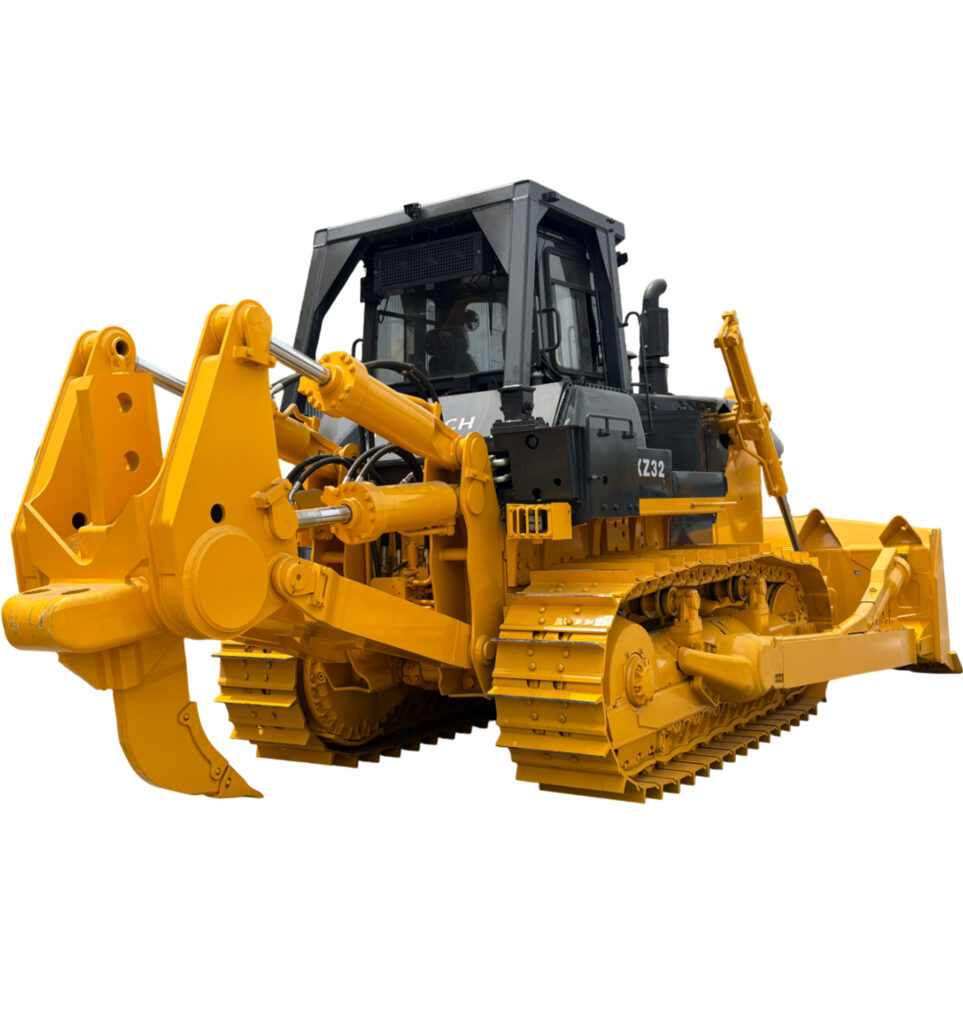

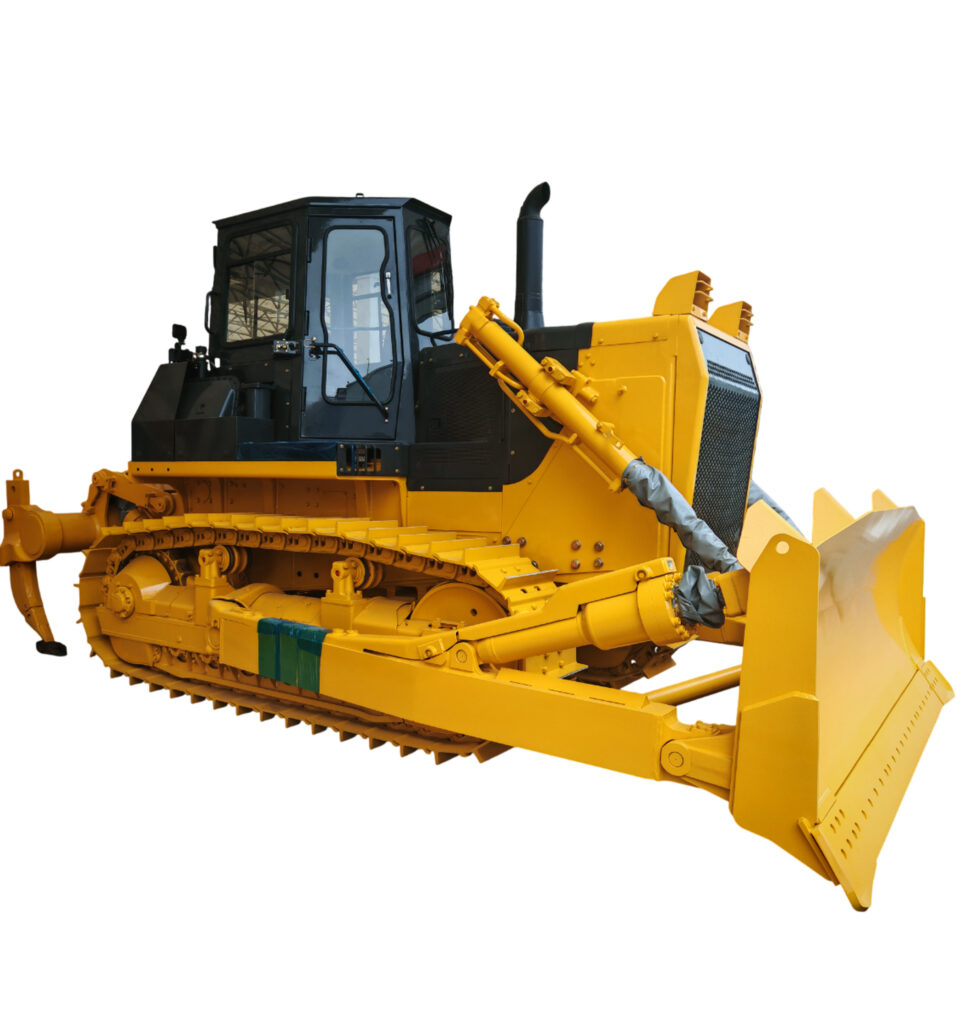

||||||
| 托轮数量No. of Carrier Rollers | 2 each side | 2 each side | 2 each side | |||||||
| 支重轮数量 No. of Track Rollers | 6 each side | 6 each side | 7 each side | |||||||
| 履带板数量Track Shoe Type | 37 each side | 38 each side | 41 each side | |||||||
| 履带板类型Track Shoe Type | 装配式单齿Singer Grouser | 装配式单齿Singer Grouser | 装配式单齿Singer Grouser | |||||||
| 履带板宽度Width of Tracek Shoe | 510 mm | 560 mm | 560 mm | |||||||
| 轨链节距Pitch | 203.2 mm | 216mm | 228.6mm | |||||||
| 履带中心距Track Gauge | 1880 mm | 2000mm | 2140mm | |||||||
| 接地比压Ground Pressure | 0.067 Mpa | 0.077 Mpa | 0.105Mpa | |||||||
| 液压系统 Hydraulic System |
最高工作油压 Max Pressure1 | 14Mpa | 14Mpa | 14Mpa | ||||||
| 油泵类型Pump Type | 齿轮泵Gear Pump | 齿轮泵Gear Pump | 齿轮泵Gear Pump | |||||||
| 流量Displacement | 243L/Min | 262L/Min | 355L/Min | |||||||
| 工作油缸内径 x 数量 Bore of Working Cylinder |
110mm*2 | 120mm*2 | 140mm*2 | |||||||
| 铲刀 Blade |
铲刀类型Blade Type | 直倾铲Strarght-tile Blad | 角铲Angle Blade | 半U铲Semi-U-Blade | 直倾铲Strarght-tile Blad | 角铲Angle Blade | 半U铲Semi-U-Blade | 直倾铲Strarght-tile Blad | 角铲Angle Blade | 半U铲Semi-U-Blade |
| 铲刀容量Blade Capacity | 4.5m3 | 4.3m3 | 5m3 | 6.4m3 | 4.7m3 | 7.5m3 | 10m3 | 6m3 | 11.9m3 | |
| 铲刀宽度Blade Width | 3388mm | 3970mm | 3556mm | 3725mm | 4365mm | 3725mm | 4130mm | 5000mm | 4130mm | |
| 铲刀高度Blade Height | 1150mm | 1040mm | 1120mm | 1315mm | 1055mm | 1374mm | 1590mm | 1140mm | 1710mm | |
| 最大铲土深度Max Drop Below Ground | 540mm | 540mm | 530mm | 538mm | 535mm | 540mm | 560mm | 630mm | 560mm | |
| 最大倾斜 Max Till Adjustment | 400mm | – | 400mm | >735 | >500 | >755 | 1000mm | 500mm | 1000mm | |
| 三齿松土器 Three Shank Ripper |
最大松土深度Max Digging Depth | 572mm | 572mm | 842mm | ||||||
| 最大离地提升高度Max Lift Above Ground | 592mm | 515mm | 883mm | |||||||
| 重量Weight of 3-shank ripper | 1667kg | 2453kg | 3802kg | |||||||
| 单齿松土器 Single Shank Ripper |
1250mm | |||||||||
| 965mm | ||||||||||
| 3252kg | ||||||||||
