| Engine Brand | Cummins QSB3.9 |
| Rated Power/Speed | 93kw |
| Emission Standard | T3 Electronic Injection |
Coordinated Action, Stronger Shock Resitance and Adaptability to Different Conditions

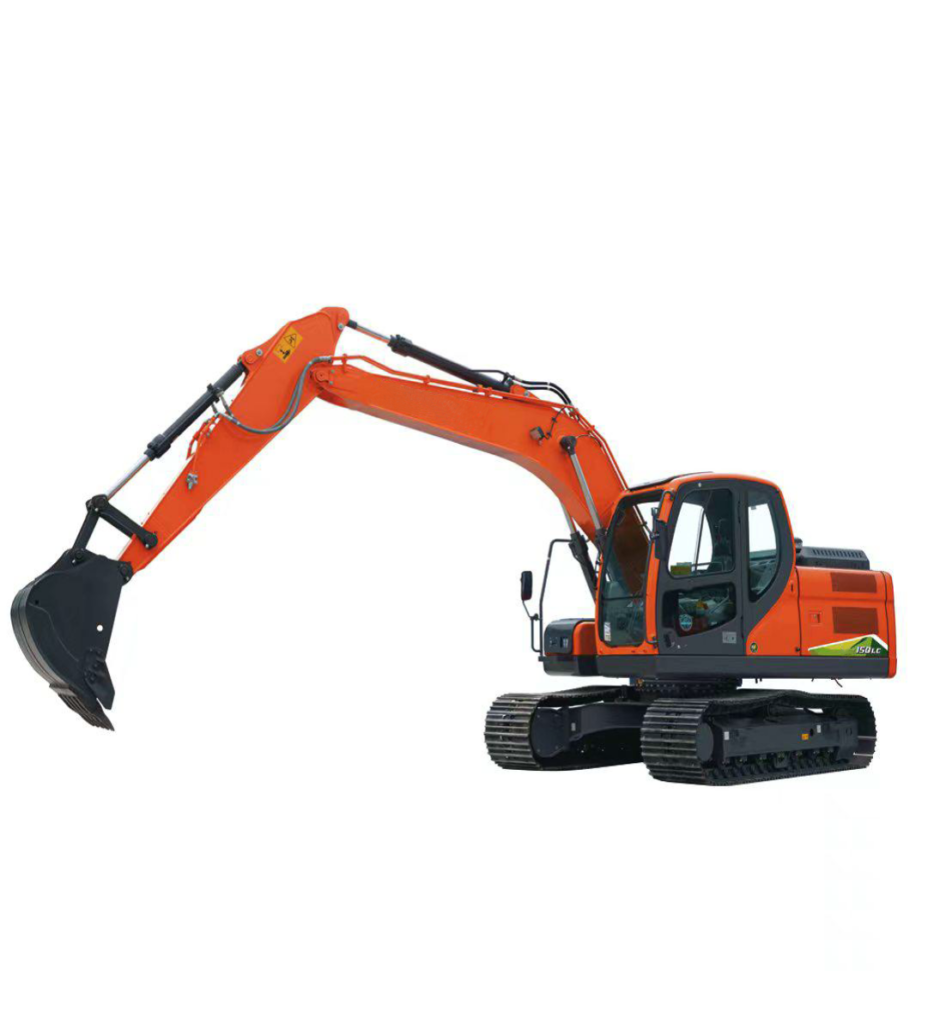

| Model | XY150 |
| Engine | |
| Engine Brand | Cummins QSB3.9 |
| Rated Power/Speed | 93kw |
| Emission Standard | T3 Electronic Injection |
| Hydraulic System | |
| Main Pump | Kawasaki |
| Pump Type | Variable Displacement Piston Pump |
| Basic Parameter | |
| Boom | 4600mm |
| Bucket Arm | 2500mm |
| Digging Bucket | 0.58m3 |
| Track Width | 600mm |
| Operation Weight | 14000kg |
| Swing System | |
| Travel Speed(High/Low) | 5.1/3.1/km/h |
| Swing Speed | 10.0rpm |
| Fluid Capacity | |
| Fuel Tank | 265L |
| Hydraulic Oil Tanks | 145L |
| Max. Digging Force | |
| Bucket Digging Force | 10.5ton |
| Stick Digging Force | 6.7ton |
| Fluid Replacement Capacity | |
| Antifreezing Solution | 10L |
| Engine Oil | 12L |
| Travelling Gearbox Oil | 2*2.5L |
| Swing Reduction Box Gear Oil | 3L |

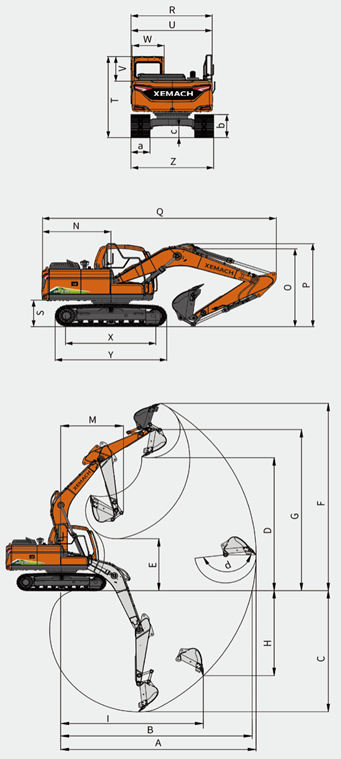

| Dimension | |||||||
| Transportation Height(to the top of the boom) | O | mm | 2640 |  |
|||
| Transportation Height(to the top of the hose) | P | mm | 2821 | ||||
| Transport Length | Q | mm | 7730 | ||||
| Counterweight Clearance | S | mm | 875 | ||||
| Overall Height(to the cab) | T | mm | 2788 | ||||
| Upper Structure Width | U | mm | 2515 | ||||
| Carbin Height Above the House | V | mm | 832 | ||||
| Cab Width | W | mm | 1010 | ||||
| Tumbler Distance | X | mm | 3034 | ||||
| Overall Track Length | Y | mm | 3740 | ||||
| Undercarriage Width | Z | mm | 2600 | ||||
| Track Width | a | mm | 600 | ||||
| Track Height | b | mm | 742 | ||||
| Min. Ground Clearance | c | mm | 414 | ||||
| Max. Digging Reach | A | mm | 8301 | ||||
| Max. Digging Reach(Ground) | B | mm | 8157 | ||||
| Max. Digging Depth | C | mm | 5623 | ||||
| Max. Loading Height | D | mm | 6315 | ||||
| Min. Loading Height | E | mm | 2176 | ||||
| Max. Digging Height | F | mm | 8759 | ||||
| Max. Bucket Pin Height | G | mm | 7550 | ||||
| Max. Vertical Wall Depth | H | mm | 2861 | ||||
| Max. Vertical Digging Radius | I | mm | 5387 | ||||
| Min. Digging Reach | L | mm | 284 | ||||
| Min. Swing Radius | M | mm | 2374 | ||||
| Bucket Extension Angle | d | mm | 179° | ||||
| Tail Swing Radius | N | mm | 2247 | ||||
