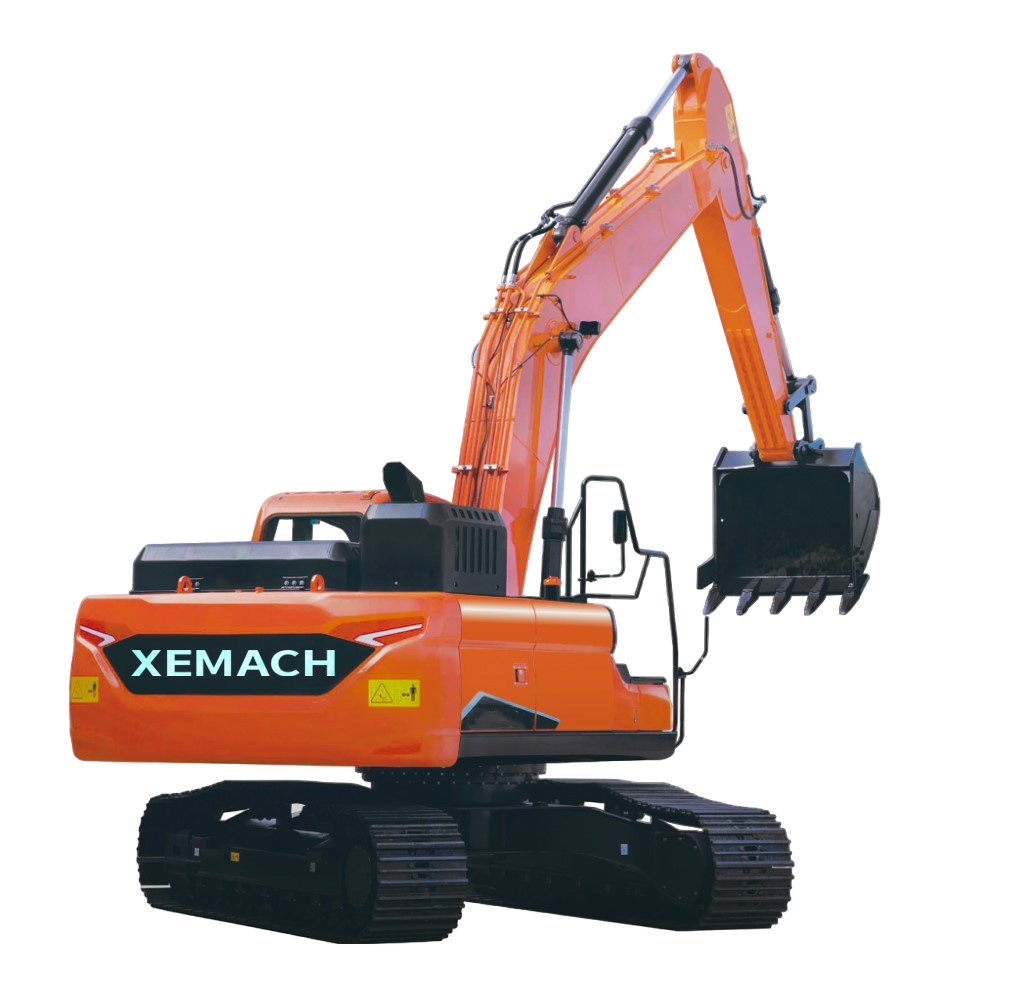

| Engine Brand | ISUZU 4HK1 |
| Rated Power/Speed | 133KW |
| Emission Standard | T3 Electronic Injection |
Powerful and Durable, Energy Saving 5%
Technical Specification
| Model | XY230 |
| Engine | |
| Engine Brand | ISUZU 4HK1 |
| Air Intake | Turbocharged |
| Rated Power/Speed | 133KW |
| Emission Standard | T3 Electronic Injection |
| Hydraulic System | |
| Main Pump | Kawasaki |
| Max. Flow of Main Pump | 2*211l/min |
| Walking Hydraulic Motor Type | Axial Plunger Type *2 |
| Swing Hydraulic Motor Type | Axial Plunger Type *1 |
| Walking Hydraulic Circuit | 32.4Mpa |
| Swing Hydraulic Circuit | 27.5Mpa |
| Boom Cylinder(No.-Bore*Stroke) | 2-120mm*85mm*1245mm |
| Arm Cylinder(No.-Bore*Stroke) | 1-135mm*95mm*1538mm |
| Bucket Cylinder(No.-Bore*Stroke) | 1-120mm*80mm*1050mm |
| Basic Parameter | |
| Digging Bucket | 1.05m3 |
| Operation Weight | 23626kg |
| Swing System | |
| Travel Speed(High/Low) | 5.4/3.1km/h |
| Swing Speed | 12.4rpm |
| Fluid Capacity | |
| Fuel Tank | 350L |
| Hydraulic Oil Tanks | 240L |
| Fluid Replacement Capacity | |
| Engine Oil/ Heatsink | 20L/42L |
| Max. Digging Force | |
| Bucket Digging/Stick Digging Force | 144.1kN/102.9kN |

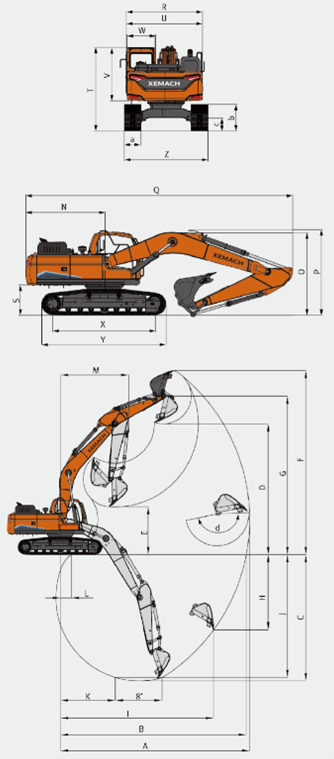

| Dimension | |||||||
| Transportation Height(to the top of the boom) | O | mm | 3100 |  |
|||
| Transportation Height(to the top of the hose) | P | mm | 3180 | ||||
| Transport Length | Q | mm | 9710 | ||||
| Counterweight Clearance | S | mm | 1100 | ||||
| Overall Height(to the cab) | T | mm | 3020 | ||||
| Upper Structure Width | U | mm | 2800 | ||||
| Carbin Height Above the House | V | mm | 850 | ||||
| Cab Width | W | mm | 1000 | ||||
| Tumbler Distance | X | mm | 3680 | ||||
| Overall Track Length | Y | mm | 4450 | ||||
| Undercarriage Width | Z | mm | 3000 | ||||
| Track Width | a | mm | 600 | ||||
| Track Height | b | mm | 960 | ||||
| Min. Ground Clearance | c | mm | 460 | ||||
| Max. Digging Reach | A | mm | 9873 | ||||
| Max. Digging Reach(Ground) | B | mm | 9699 | ||||
| Max. Digging Depth | C | mm | 6592 | ||||
| Max. Loading Height | D | mm | 6830 | ||||
| Min. Loading Height | E | mm | 2501 | ||||
| Max. Digging Height | F | mm | 9616 | ||||
| Max. Bucket Pin Height | G | mm | 8274 | ||||
| Max. Vertical Wall Depth | H | mm | 3929 | ||||
| Max. Vertical Digging Radius | I | mm | 7988 | ||||
| Max. Digging Depth(8′ level) | J | mm | 6411 | ||||
| Min. Radius 8′ level | K | mm | 2858 | ||||
| Min. Digging Reach | L | mm | 562 | ||||
| Min. Swing Radius | M | mm | 3560 | ||||
| Tail Swing Radius | N | mm | 2730 | ||||
