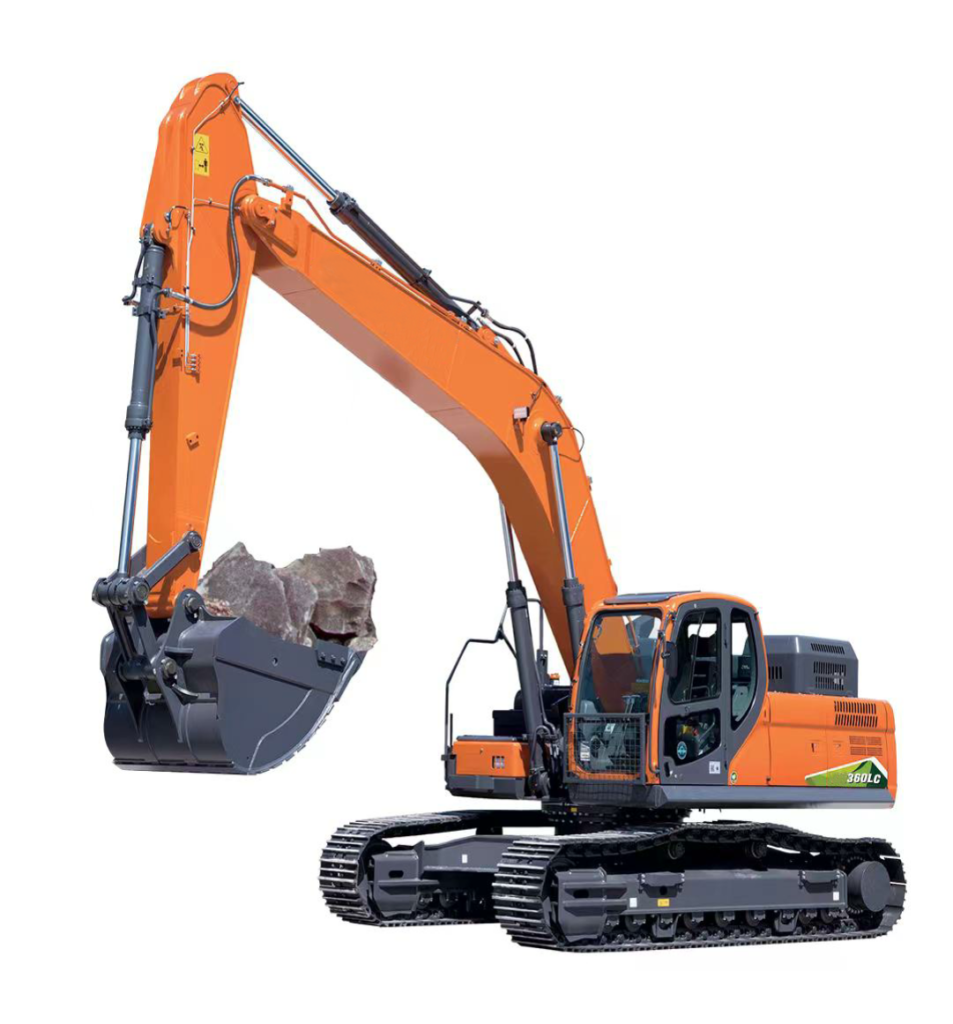

Mine Overload, Loading Sharp Tools

• Isuzu turbocharged engine
• Dual pump constant power negative flow hydraulic system
• Widened and reinforced chassis
• Standard oil bath air filter
• Air conditioning

Technical Specification

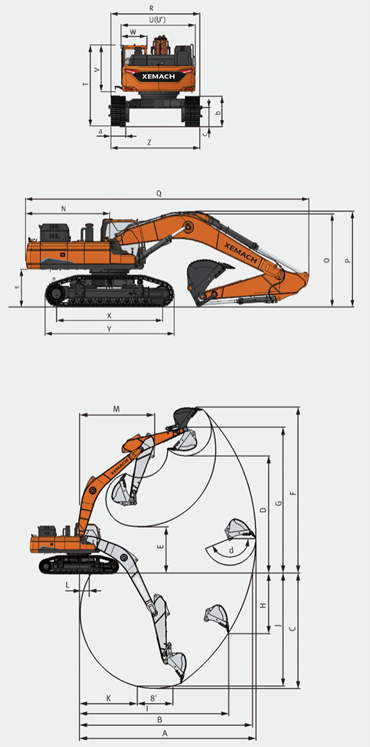

Dimension
Transportation Height(to the top of the boom)	O	mm	3300
Transportation Height(to the top of the hose)	P	mm	3410
Transport Length	Q	mm	11050
Counterweight Clearance	S	mm	1190
Overall Height(to the cab)	T	mm	3080
Upper Structure Width	U	mm	3070
Carbin Height Above the House	V	mm	850
Cab Width	W	mm	1000
Tumbler Distance	X	mm	4040
Overall Track Length	Y	mm	4910
Undercarriage Width	Z	mm	3285
Track Width	a	mm	600
Track Height	b	mm	1090
Min. Ground Clearance	c	mm	530
Max. Digging Reach	A	mm	10748
Max. Digging Reach(Ground)	B	mm	10553
Max. Digging Depth	C	mm	7320
Max. Loading Height	D	mm	7259
Min. Loading Height	E	mm	2732
Max. Digging Height	F	mm	10243
Max. Bucket Pin Height	G	mm	8885
Max. Vertical Wall Depth	H	mm	4414
Max. Vertical Digging Radius	I	mm	8567
Max. Digging Depth(8′ level)	J	mm	7152
Min. Radius 8′ level	K	mm	3084
Min. Digging Reach	L	mm	360
Min. Swing Radius	M	mm	4019
Tail Swing Radius	N	mm	3500
