| Engine Brand | ISUZU/Cummins 6WG1/QSM11 |
| Rated Power/Speed | 300kw/278kw |
| Emission Standard | T3 Electronic Injection |
Heavy Mining, Sharp Tool for Mining
Technical Specification
| Moder | XY560 |
| Engine | |
| Engine Brand | ISUZU/Cummins |
| Engine Model | 6WG1/QSM11 |
| Air Intake | Turbocharged |
| Rated Power/Speed | 300kw/278kw |
| Emission Standard | T3 Electronic Injection |
| Hydraulic System | |
| Main Pump | Kawasaki/Rexroth |
| Max. Flow of Main Pump | 2*450L/min |
| Walking Hydraulic Motor Type | Axial Plunger Type *2 |
| Swing Hydraulic Motor Type | Axial Plunger Type *2 |
| Boom Cylinder(No.-Bore*Stroke) | 2-170*115*1650 |
| Arm Cylinder(No.-Bore*Stroke) | 1-190*130*1980 |
| Bucket Cylinder(No.-Bore*Stroke) | 1-170*115*1340 |
| Basic Parameter | |
| Bucket Arm | 2.4-3.2m3 |
| Operation Weight | 53200kg |
| Swing System | |
| Travel Speed(High/Low) | 5.3/3.1 |
| Swing Speed | 10.6rpm |
| Max. Digging Force | |
| Bucket Digging Force | 310kN |
| Stick Digging Force | 230kN |

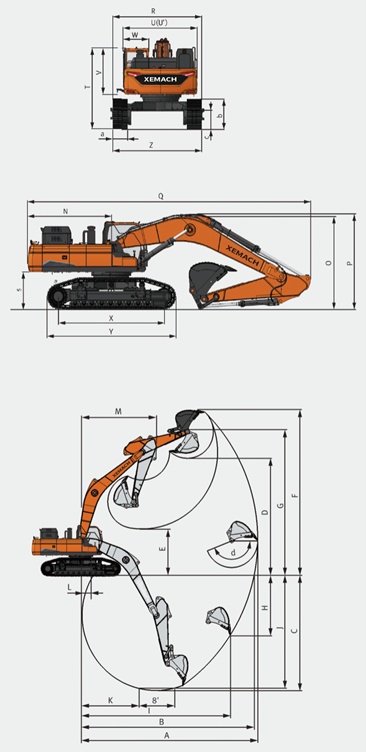

| Dimension | |||||||
| Transportation Height(to the top of the boom) | O | mm | 4140 |  |
|||
| Transportation Height(to the top of the hose) | P | mm | 4180 | ||||
| Transport Length | Q | mm | 11530 | ||||
| Counterweight Clearance | S | mm | 1425 | ||||
| Overall Height(to the cab) | T | mm | 3370 | ||||
| Upper Structure Width | U | mm | 2990 | ||||
| Carbin Height Above the House | V | mm | 850 | ||||
| Cab Width | W | mm | 1010 | ||||
| Tumbler Distance | X | mm | 4475 | ||||
| Overall Track Length | Y | mm | 5505 | ||||
| Undercarriage Width(extendable chassis) | Z | mm | 2990/3490 | ||||
| Track Width | a | mm | 600 | ||||
| Track Height | b | mm | 1190 | ||||
| Min. Ground Clearance | c | mm | 725 | ||||
| Max. Digging Reach | A | mm | 11069 | ||||
| Max. Digging Reach(Ground) | B | mm | 10782 | ||||
| Max. Digging Depth | C | mm | 6991 | ||||
| Max. Loading Height | D | mm | 6532 | ||||
| Min. Loading Height | E | mm | 2695 | ||||
| Max. Digging Height | F | mm | 9926 | ||||
| Max. Bucket Pin Height | G | mm | 8620 | ||||
| Max. Vertical Wall Depth | H | mm | 5082 | ||||
| Max. Vertical Digging Radius | I | mm | 8002 | ||||
| Max. Digging Depth(8′ level) | J | mm | 6910 | ||||
| Min. Radius 8′ level | K | mm | 3550 | ||||
| Min. Digging Reach | L | mm | 110 | ||||
| Min. Swing Radius | M | mm | 4715 | ||||
| Tail Swing Radius | N | mm | 3800 | ||||
