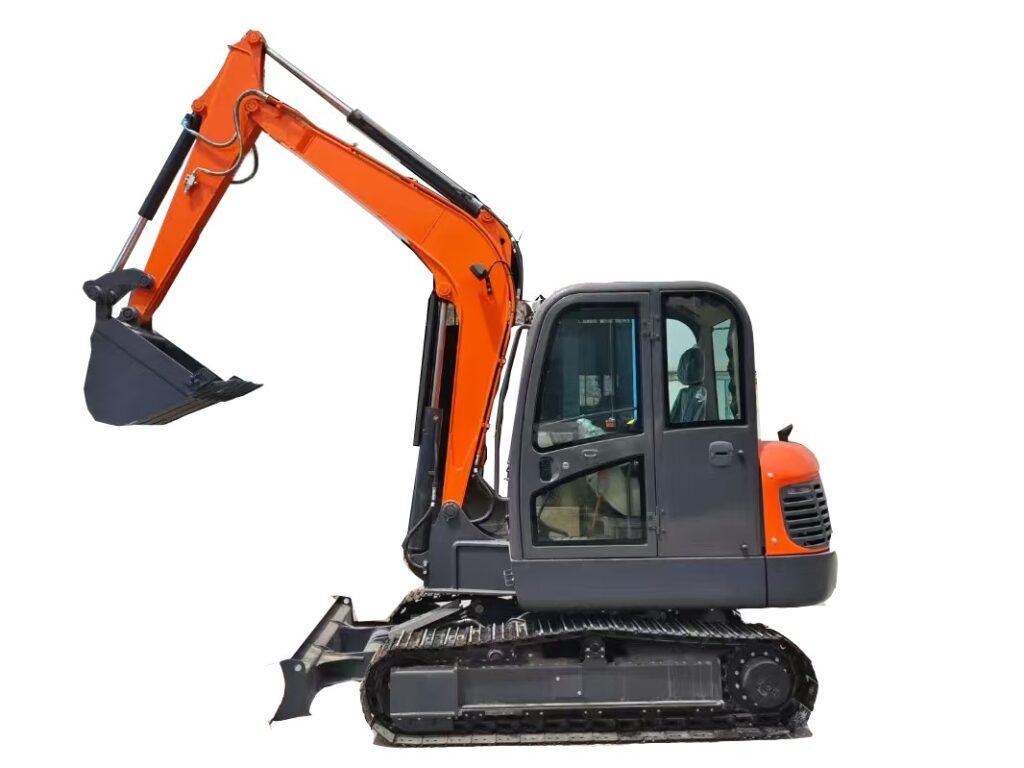

Reliable, Comfortable, Flexible, Small Vibration
Technical Specification
| Model | XY60 |
| Engine | |
| Engine Brand | Yanmar 4TNV94 |
| Cylinder Bore*Valve | Ф94*100 |
| Rated Power/Speed | 36.2kw/2200rpm |
| Emission Standard | T3 Electronic Injection |
| Basic Parameter | |
| Boom | 3000mm |
| Bucket Arm | 1600mm |
| Digging Bucket | 0.21m3 |
| Track Width | 380mm |
| Operation Weight | 5525kg |
| Travel Speed(High/Low) | 4.3/2.4km |
| Fluid Capacity | |
| Fuel Tank | 115L |
| Hydraulic Oil Tanks | 62L |
| Max. Digging Force | |
| Bucket Digging Force | 3.9ton |
| Stick Digging Force | 2.8ton |
| Fluid Replacement Capacity | |
| Anti-freezing Solution | 10L |
| Engine Oil | 10.5L |
| Travelling Gearbox Oil | 2*1.4L |
| Swing Reduction Box Gear Oil | 1L |

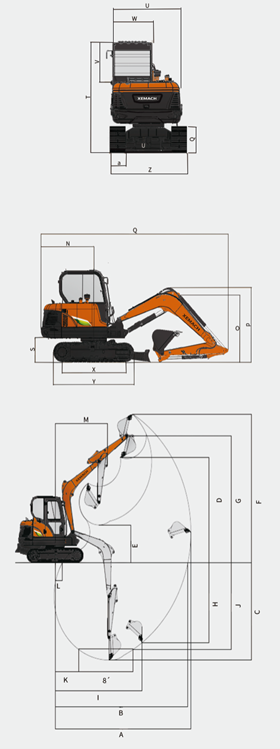

| Dimension | |||||||
| Transportation Height(to the top of the boom) | O | mm | 1970 |  |
|||
| Transportation Height(to the top of the hose) | P | mm | 2040 | ||||
| Transport Length | Q | mm | 5870 | ||||
| Counterweight Clearance | S | mm | 685 | ||||
| Overall Height(to the cab) | T | mm | 2590 | ||||
| Upper Structure Width | U | mm | 1765 | ||||
| Carbin Height Above the House | V | mm | 920 | ||||
| Cab Width | W | mm | 1030 | ||||
| Tumbler Distance | X | mm | 1990 | ||||
| Overall Track Length | Y | mm | 2540 | ||||
| Undercarriage Width | Z | mm | 1860 | ||||
| Track Width | a | mm | 380 | ||||
| Track Height | b | mm | 615 | ||||
| Min. Ground Clearance | c | mm | 260 | ||||
| Max. Digging Reach | A | mm | 6170 | ||||
| Max. Digging Reach(Ground) | B | mm | 6033 | ||||
| Max. Digging Depth | C | mm | 3808 | ||||
| Max. Loading Height | D | mm | 4051 | ||||
| Min. Loading Height | E | mm | 1460 | ||||
| Max. Digging Height | F | mm | 5800 | ||||
| Max. Bucket Pin Height | G | mm | 4951 | ||||
| Max. Vertical Wall Depth | H | mm | 2371 | ||||
| Max. Vertical Digging Radius | I | mm | 4810 | ||||
| Max. Digging Depth(8′ level) | J | mm | 3401 | ||||
| Min. Radius 8′ level | K | mm | 1070 | ||||
| Min. Digging Reach | L | mm | 314 | ||||
| Min. Swing Radius | M | mm | 2365 | ||||
| Tail Swing Radius | N | mm | 1650 | ||||
