| Engine Brand | ISUZU/Cummins 6WGI/QSI5 |
| Emission Standard | T3 Electronic Injection |
Strong Performance for Mining
Technical Specification
| Model | XY700 |
| Engine | |
| Engine Brand | ISUZU/Cummins |
| Engine Model | 6WGI/QSI5 |
| Air Intake | Turbocharged |
| Emission Standard | T3 Electronic Injection |
| Hydraulic System | |
| Main Pump | Kawasaki |
| Boom Cylinder(No.-Bore*Stroke) | 2-180mm*125mm*1750mm |
| Arm Cylinder(No.-Bore*Stroke) | 1-200mm*140mm*1879mm |
| Bucket Cylinder(No.-Bore*Stroke) | 1-185mm*130mm*1465mm |
| Basic Parameter | |
| Operation Weight | 68100kg |
| Digging Bucket | 3.3-4.5m3 |
| Swing System | |
| Travel Speed(High/Low) | 4.1/3.3km/h |
| Swing Speed | 8rpm |
| Fluid Capacity | |
| Fuel Tank | 760L |
| Max. Digging Force | |
| Bucket Digging Force | 28.8ton |
| Stick Digging Force | 33.6ton |

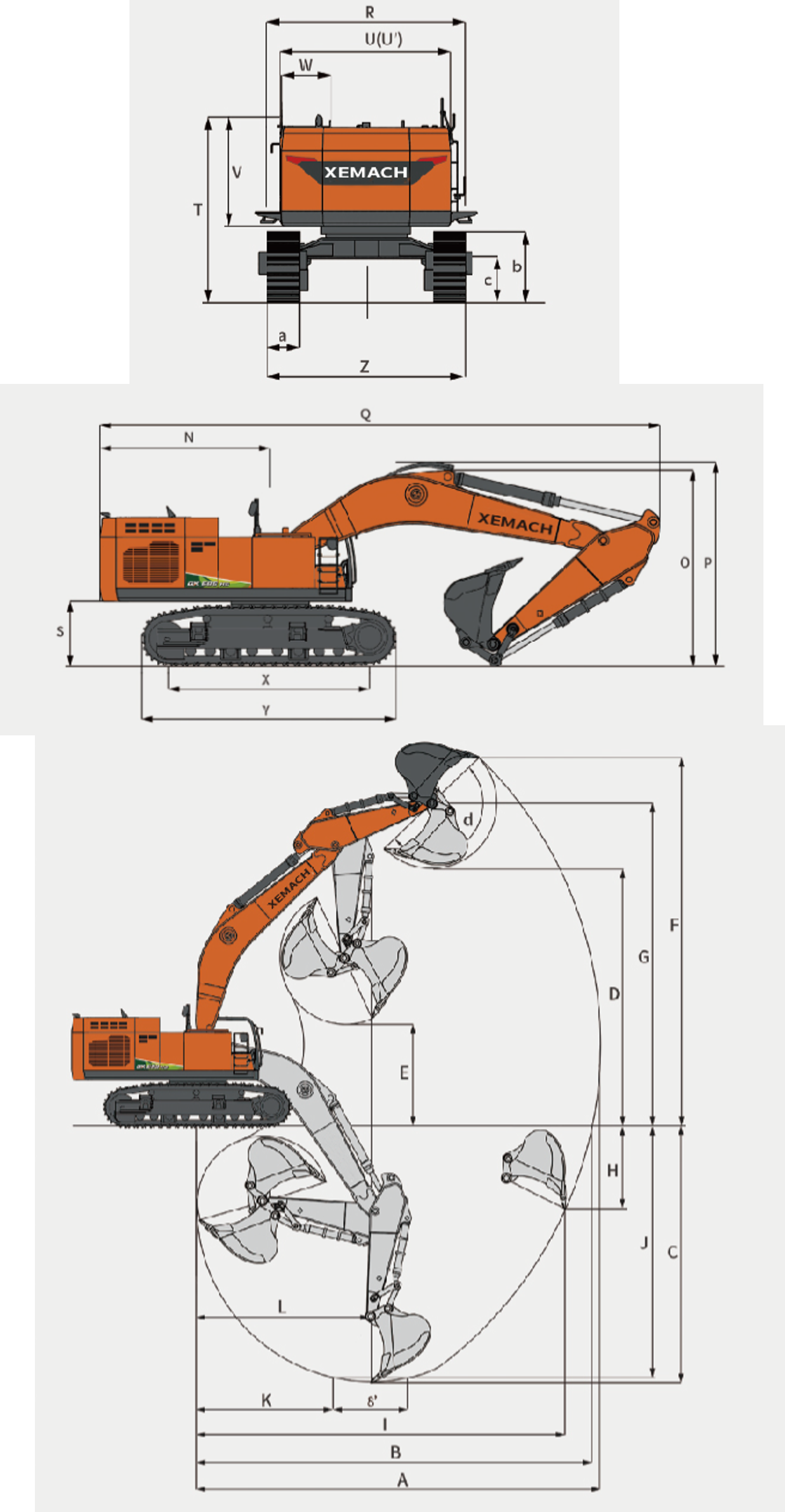

| Dimension | |||||||
| Transportation Height(to the top of the boom) | O | mm | 4885 |  |
|||
| Transportation Height(to the top of the hose) | P | mm | 4990 | ||||
| Transport Length | Q | mm | 12145 | ||||
| Counterweight Clearance | S | mm | 1430 | ||||
| Overall Height(to the cab) | T | mm | 3420 | ||||
| Upper Structure Width | U | mm | 3200 | ||||
| Carbin Height Above the House | V | mm | 1900 | ||||
| Cab Width | W | mm | 1010 | ||||
| Tumbler Distance | X | mm | 4600 | ||||
| Overall Track Length | Y | mm | 5695 | ||||
| Undercarriage Width(extendable chassis) | Z | mm | 3340/3900 | ||||
| Track Width | a | mm | 600 | ||||
| Track Height | b | mm | 1230 | ||||
| Min. Ground Clearance | c | mm | 790 | ||||
| Max. Digging Reach | A | mm | 11432 | ||||
| Max. Digging Reach(Ground) | B | mm | 11137 | ||||
| Max. Digging Depth | C | mm | 6975 | ||||
| Max. Loading Height | D | mm | 7145 | ||||
| Min. Loading Height | E | mm | 3205 | ||||
| Max. Digging Height | F | mm | 10710 | ||||
| Max. Bucket Pin Height | G | mm | 9190 | ||||
| Max. Vertical Wall Depth | H | mm | 3215 | ||||
| Max. Vertical Digging Radius | I | mm | 9840 | ||||
| Max. Digging Depth(8′ level) | J | mm | 6830 | ||||
| Min. Radius 8′ level | K | mm | 3720 | ||||
| Min. Swing Radius | M | mm | 5240 | ||||
| Tail Swing Radius | N | mm | 3960 | ||||
