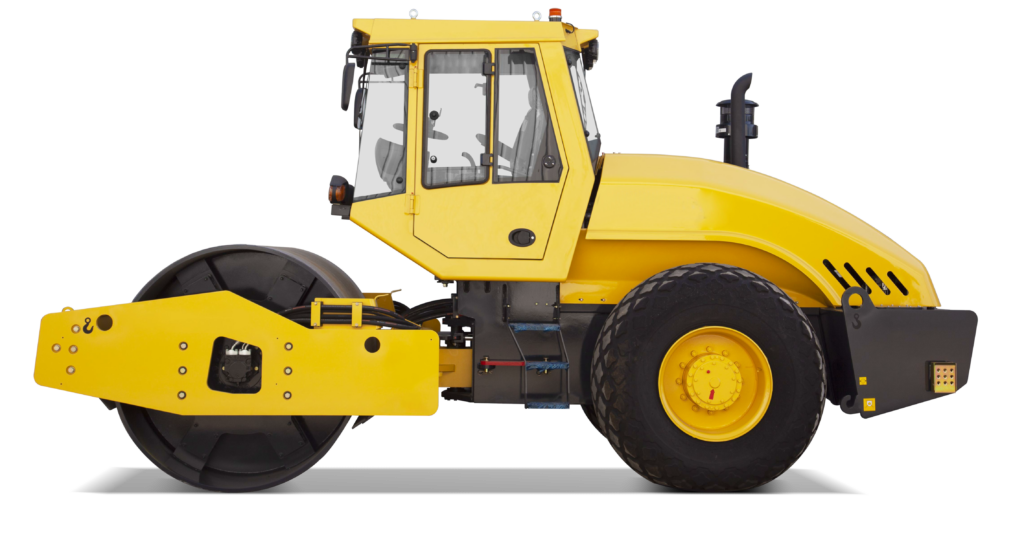

| KS Series | KS126D | KS146D | KS166HD | KS176D | KS206D | KS226D |
| Operating Weight(kg) | 12,000 | 14,000 | 16,400 | 17,500 | 20,000 | 22,000 |
| Static Linearity(N/cm) | 322 | 391 | 464 | 488 | 600 | 644 |
| Amplitude(mm) | 1.85/0.83 | 1.85/0.83 | 1.3/0.9 | 1.9/0.9 | 1.95/0.91 | 1.98/0.99 |
| Vibration Frequency(Hz) | 30/34 | 30/34 | 28/33 | 28/33 | 28/32 | 28/32 |
| Centrifugal Force (kN) | 280/162 | 315/190 | 330/225 | 350/245 | 400/270 | 415/285 |
| Drum Width(mm) | 2,130 | 2,130 | 2,110 | 2,100 | 2,150 | 2150 |
| Drum Diameter(mm) | 1,533 | 1,533 | 1,540 | 1,540 | 1,550 | 1500 |
| Speed Range(km/h) | 0-9 | 0-9 | 0-9 | 0-9 | 0-9 | 0-9 |
| Climbing Capability(%) | 45 | 45 | 45 | 45 | 45 | 45 |
| Turing Radius(mm) | 6,500 | 6,500 | 6,500 | 6,500 | 6,500 | 6500 |
| Engine Brand | Weichai | Weichai | Weichai | Weichai | Weichai | Weichai |
| Emission Standard | China Tier 2 | China Tier 2 | China Tier 2 | China Tier 2 | China Tier 2 | China Tier 2 |
| Engine Power(kW) | 105 | 105 | 129 | 129 | 129 | 129 |
| Volume(mm) | 5970*2290*3150 | 5900*2290*3150 | 6300*2300*3150 | 6380*2300*3150 | 6300*2430*3150 | 6300*2430*3150 |
| Hydraulic System | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss |
