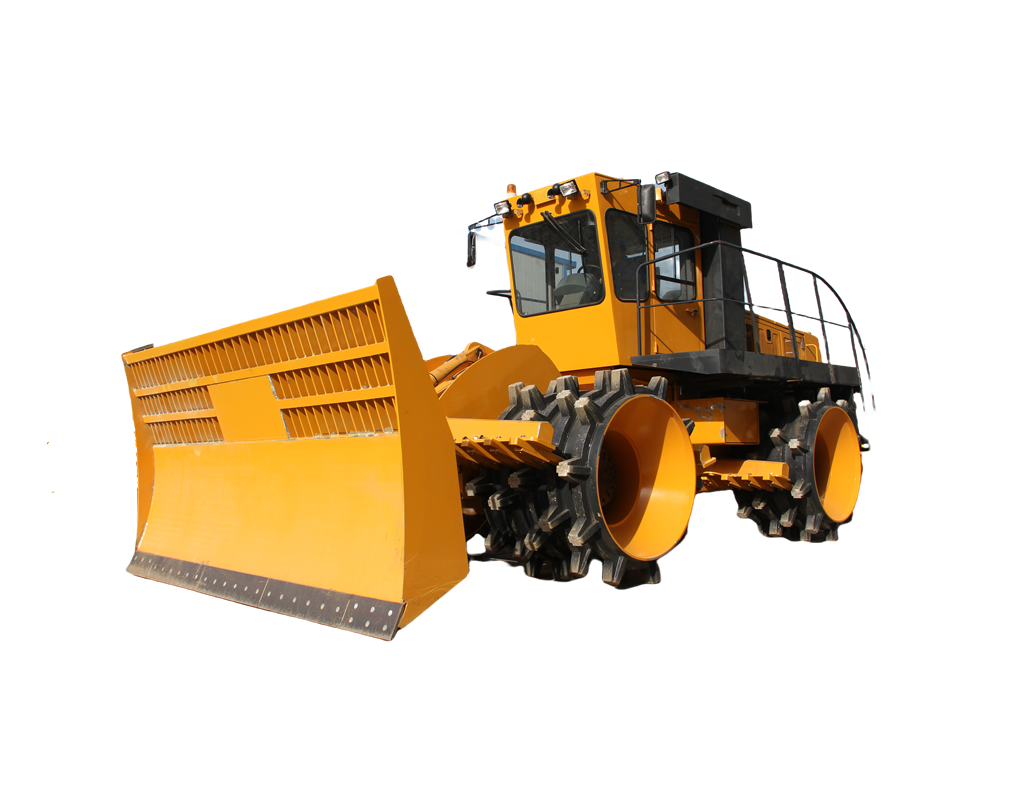

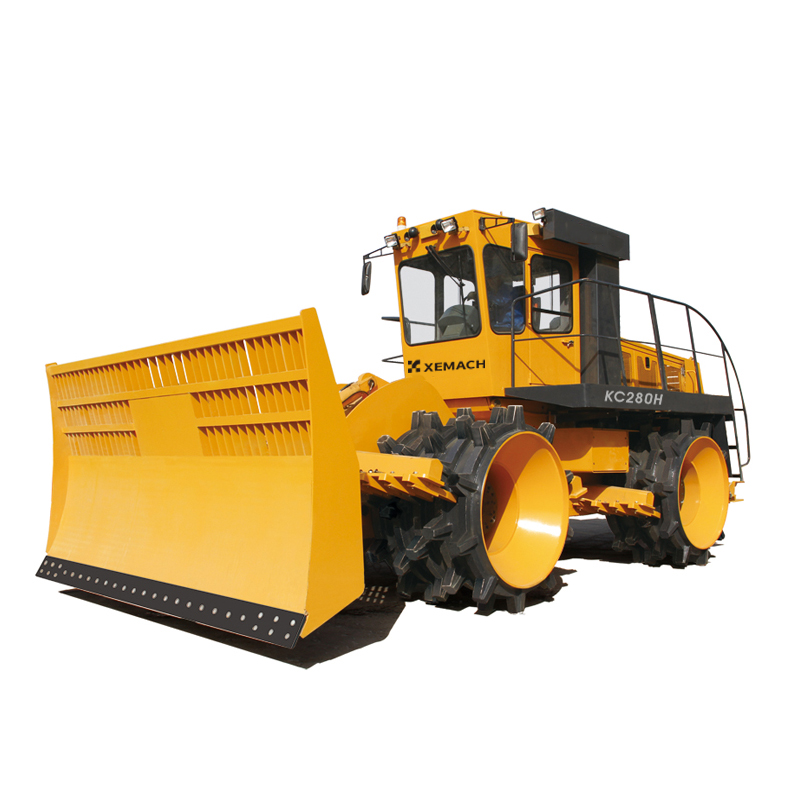

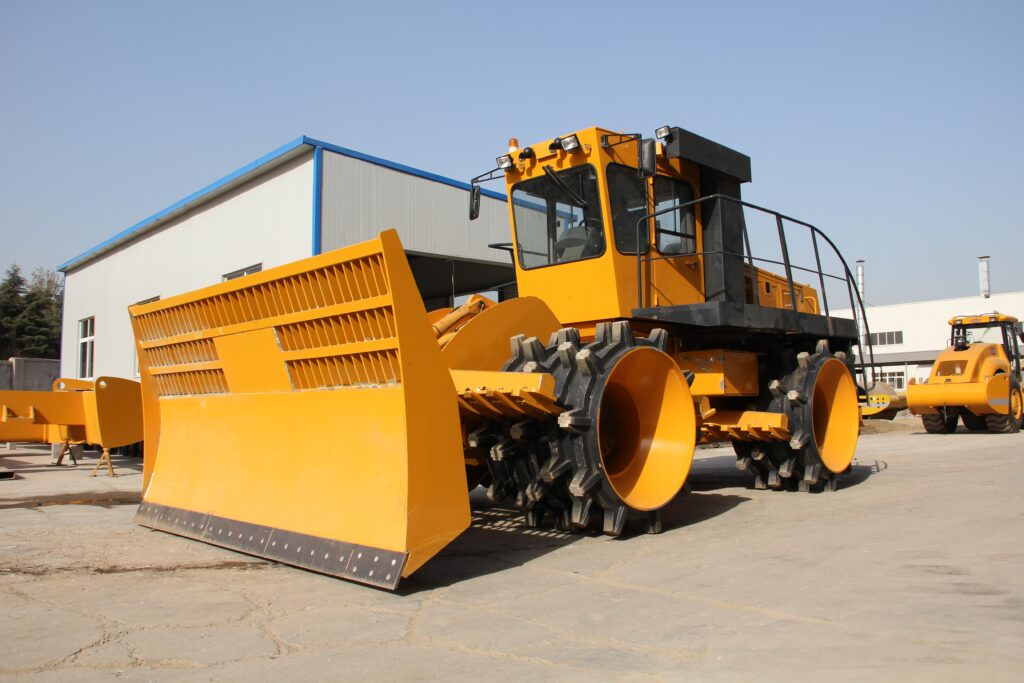

| KC Series | KC230H | KC260H | KC280H |
| Operation Weight(kg) | 23,000 | 26,000 | 28,000 |
| Crushing Width(mm) | 3,430 | 3,430 | 3,430 |
| Max. Speed(km/h) | 11 | 11 | 11 |
| Min. Clearance(mm) | 490 | 490 | 490 |
| Shovel Height(mm) | 1,880 | 1,880 | 1,880 |
| Compaction Capacity(t/m3) | from 0.35 to 0.9+ | From 0.35 to 1.0+ | from 0.35 to 1.0+ |
| Engine Brand | Shangchai | Shnagchai | Shangchai |
| Emission Standard | China Tier 3 | China Tier 3 | China Tier 3 |
| Engine Power(kW) | 192 | 192 | 192 |
| Volume(mm) | 8100*3800*3670 | 8100*3800*3670 | 8100*3800*3670 |
