| Engine Model | KOOP192F |
| No. of Cylinders | 3 |
| Emissions | China National Tier 2 standards |
| Operating weight | 1000kg |
Specifications
| Engine | |
| Engine Model | KOOP192F |
| No. of Cylinders | 3 |
| Power | 12HP |
| Displacement | 0.499L |
| Emissions | China National Tier 2 standards |
| Weight | |
| Operating weight | 1000kg |

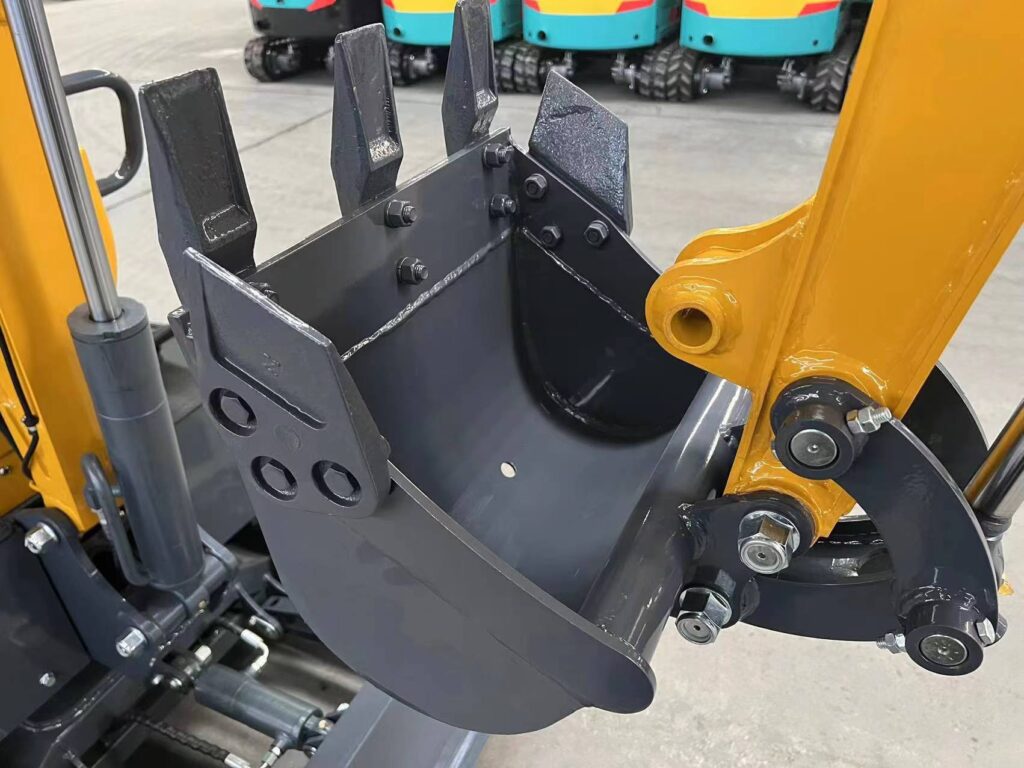

| Bucket | |
| Capacity | 0.022m3 |
| Width | 380mm |
| Dozer Blade | |
| Width | 930mm |
| Height | 210mm |
| Travel System | |
| Max. Travel Speed | 1.2km/h |
| Max. Gradeability | 30° |

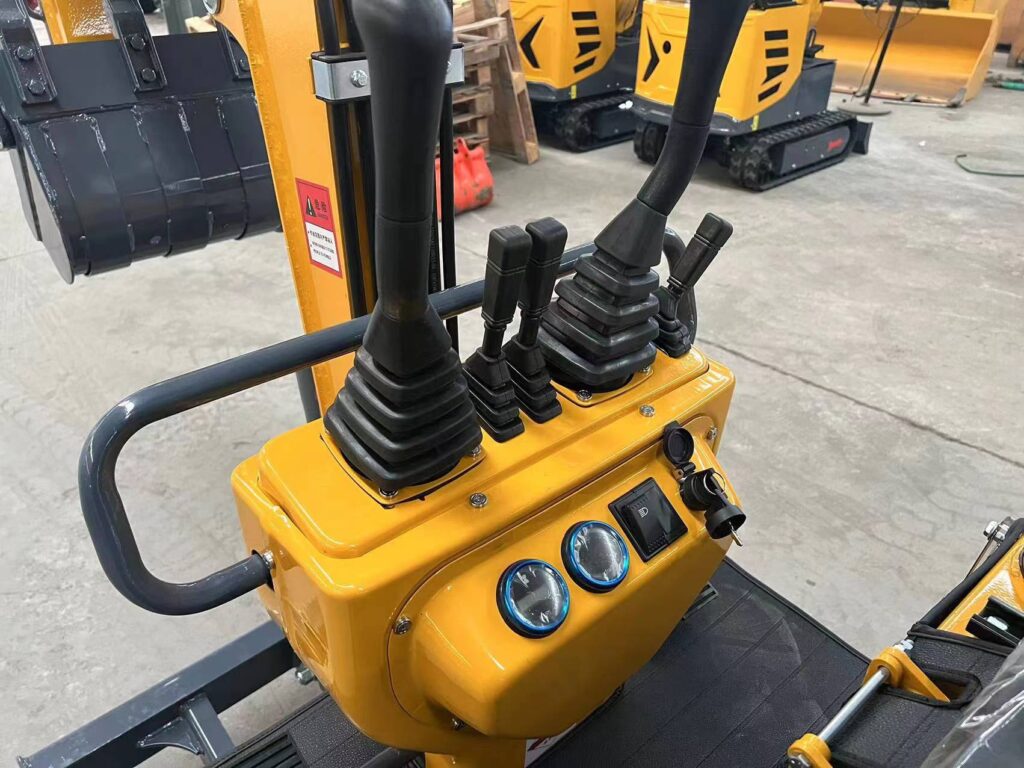

| Control Platform | |
| Control Platform | Mechanism |
| Hydraulic System | |
| Hydraulic Valve | Local Brand |
| Operating Pressure | 16MPa |
| Pump Flow | 18L/min |
| Refill Capacity | |
| Hydraulic Oil Tank | 18L |
| Engine Oil Tank | 1.65L |
| Fuel Oil Tank | 8L |
| Swing System | |
| Max. Swing Speed | 9rpm |
| Dimensions | |
| Shipping Length | 2870mm |
| Shipping Width | 930mm |
| Shipping Height | 2213mm |
| Track Type | Rubber with steel wire inside |
| Length to Center of Track | 746mm |
| Track Width | 180mm |
| Track Length | 1200mm |
| Ground Clearance | 365mm |
| Cooling System | |
| Cooling System | Water Cooled |
| Working Range | |
| Max. Digging Force | 6.5kN |
| Max. Reach at Ground Line | 2940mm |
| Max. Cutting Height | 2450mm |
| Max. Digging Depth | 1760mm |
| Max. Loading Height | 1710mm |
| Max. Vertical Wall Digging Height | 1690mm |
| Min. Front Swing Radius | 1490mm |
Notes:
All dimensions are approximate and may vary depending on bucket selection
