Features on XN20 Pro Mini Excavator

Top-tier core configuration
- Laidong385B Engine with 39HP

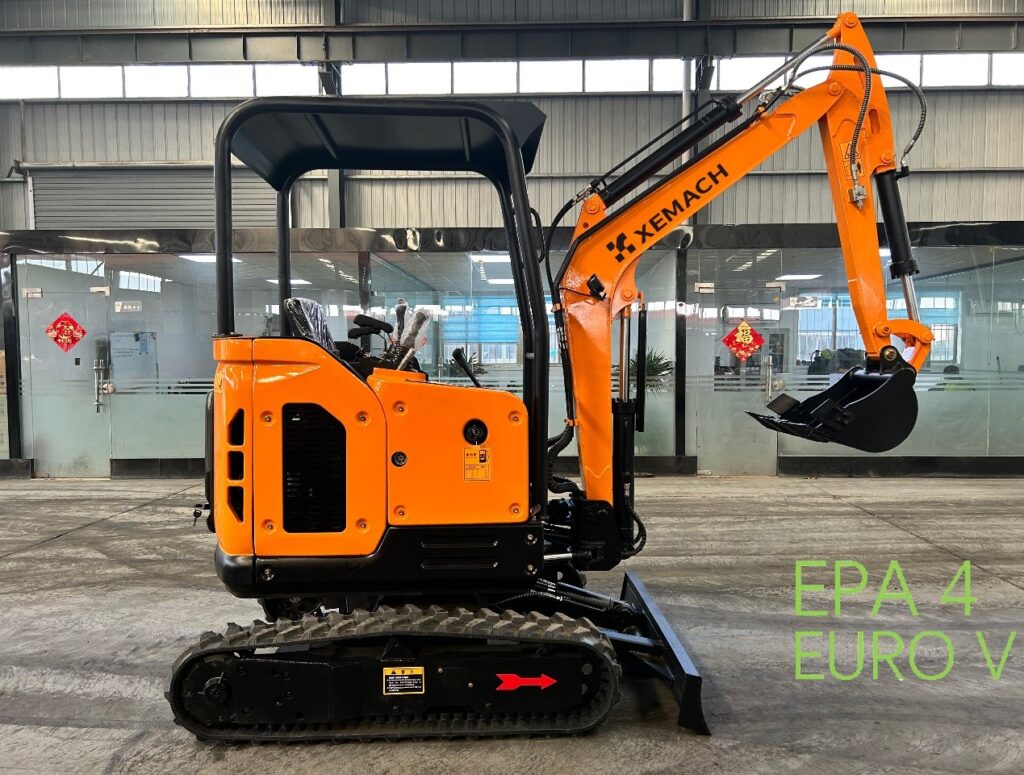

- Optional Kubota D722 Engine compliant with U.S. EPA Tier 4 and EU Stage V standards
Pivot Control System: Coordinate operation
Additional Breaker Pipeline:
- Equipped with overflow valve to prevent oil leaks when installing breakers
Fuel-efficient and cost-effective
- Equipped with load-sensitive flow distribution systems
Reinforced structural components
- Booms, sticks and undercarriage are weld by robots for durability and reliability
Components within easy to reach
- Convenient for maintenance

Engine
Engine Model	Laidong385B
No. of Cylinders	3
Power	39HP
Displacement	1.617L
Emissions	China National Tier 2 standards

Weight
Operating weight	1680kg

Control Platform
Control Platform	Pivot

Swing System
Max. Swing Speed	10rpm

Dimensions
Shipping Length	3110mm
Shipping Width	1100mm
Shipping Height	2280mm
Track Type	Rubber with steel wire inside
Length to Center of Track	1153mm
Track Width	230mm
Track Length	1472mm
Ground Clearance	400mm

Cooling System
Cooling System	Water Cooled

Working Range
Max. Reach at Ground Line	2940mm
Max. Cutting Height	3010mm
Max. Digging Depth	2100mm
Max. Loading Height	2285mm
Max Vertical Wall Digging Height	2010mm
Min. Front Swing Radius	1418mm

Notes:

All dimensions are approximate and may vary depending on bucket selection
