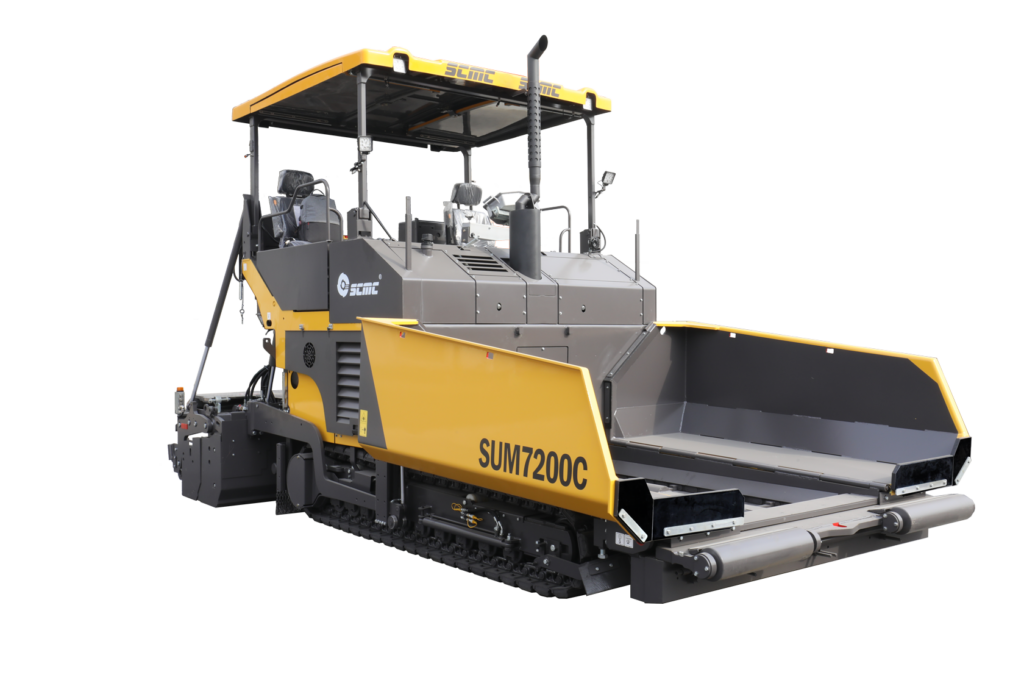

| SUM7200C paver main performance parameters |
| Machine model |
SUM7200D |
| Machine name |
Paver |
| Engine type |
Dongfeng Cummins B5.9CS4 |
| Engine power rating |
154kW/2200rpm |
| Maximum engine torque |
820 Nm/1600rpm |
| Engine emission |
China Ⅳ |
| Driving mode |
track |
| Maximum working speed |
0-20m/min |
| Maximum travel speed |
0-3.6km/h |
| Gradeability |
20% |
| Minimum ground clearance |
111mm |
| Steering transmission form |
Electrohydraulic control |
| Track plate width |
300mm |
| Track grounding length |
3000mm |
| Track center distance |
1973mm |
| Hopper capacity |
15t |
| Maximum theoretical productivity |
900t/h |
| Speed of scraper conveyer |
0-25m/min |
| Rotation speed of screw parting device |
0-100r/min |
| screed configuration |
Single tamper, electric heating, hydraulic expansion |
| Basic paving width |
3000mm |
| Screed widening type |
Hydraulic + Mechanical |
| Maximum paving width |
9000 mm |
| Maximum paving thickness |
300mm |
| Paving camber |
-2～+4% |
| Paved surface evenness |
2mm/3m |
| Density of paved pavement |
85% |
| Vibratory drive form |
Hydraulic |
| Generator power |
30kW |
| The heating device of the screed |
electrical heating |
| Tamper frequency |
29Hz |
| Vibration compaction device impact stroke |
5mm |
